Yamaha DGX-640 Phono Jack Hack and Easel Upgrade » Yamaha_DGX-640_Phono_Jack_Hack.Still026

Solder these select wires to the power board

Solder these select wires to the power board

I picked large wire for the internal speakers and ground and small 22 AWG stranded wire for the headset wires.

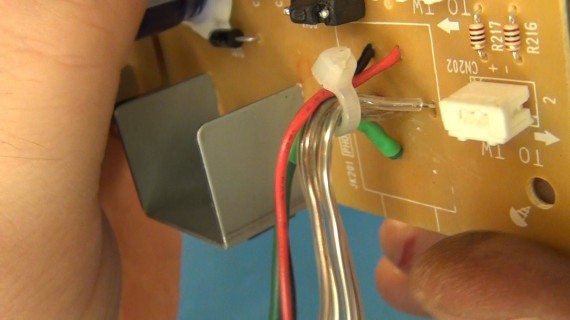

Shrink wrap and wire tie for strain relief
